Checking in with Corning: the popularity of foldable glass

Final week, we had the risk to speak to Scott Forrester, division vp, Marking and Innovation merchandise at Corning. The organization offered us a look at Corning’s records of glass and ceramic production, together with perception at the manufacturing of Gorilla Glass for smartphones.
Checking in with Corning: the popularity of foldable glass


Checking in with Corning: repute of foldable glass Corning Incorprated

We had a danger to invite questions about Gorilla Glass and the way Corning strikes a stability among scratch resistance and durability towards shattering. We also asked approximately the development of the use of flexible glass in foldable smartphones.

Subsequently, we checked in with Corning on its mind approximately Sapphire glass. In case you consider, there had been some devices that used this greater luxurious but exceedingly scratch-resistant glass like the HTC U extremely Sapphire version, the rugged Kyocera shield, and the Apple Watch edition.



Introduction and brief records of Corning

Corning has been around since 1851 and it changed into first referred to as Corning Glass Works while it opened in Somerville, Massachusetts as glass have become a extra commonplace raw fabric. Its first patent in 1877 changed into for railroad signal lenses with a smooth outdoors that didn’t gunk up through the years. In 1879, it developed the glass around the first Edison carbon filament earlier than inventing a manner to mass produce these bulbs.



Corning Incorprated Corning Incorprated

In 1915, Corning commenced the PYREX logo of glass cookware and could cross on to mass-produce television tubes within the Nineteen Forties, making TVs greater inexpensive. In 1964, Corning scientists would invent a brand new process of forming glass in 1964 referred to as “fusion overflow” that made extremely-flat panes pristine glass and might sooner or later become the procedure for liquid crystal display monitors later within the 2000s.

In 2007, Corning’s CEO changed into contacted through Steve Jobs with specs to develop a long lasting, thin, and lightweight glass for the first iPhone - this would be known as Gorilla Glass. During the last decade, Corning step by step evolved thinner and lighter Gorilla Glass whilst retaining the same shatter and scratch resistance.

Nowadays, Corning is constantly researching new glass compositions that could assist make glass extra proof against scratches and drops. Now Corning is growing glass that could be used in the future era of foldable smartphones.

Other than consumer electronics, Corning manufactures glass for a wide sort of applications inclusive of optical fiber for high-pace communications, glassware for pharmaceuticals, production and packaging, and emissions-manage merchandise in the automotive industry. Corning employs 50,000 workers at 70 manufacturing and studies facilities at some point of North the us, Europe, and Asia.
Nation of foldable glass, scratch vs drop, and whatever happened to sapphire glass

Foldable phones made their debut this yr and based on the past several months, we've a feeling the trend is right here to stay. Those presentations are all currently protected in plastic due to the fact that it's right away available and clean to mold to the foldable form issue. The drawback to plastic is that it scratches a good deal less difficult than glass.

Glass could make for a extra durable layer of safety over a foldable display, however is it even possible to make glass that folds this way?

There is lots of technological know-how at play in making glass and its chemical make-up and forming method are what dictates the traits that the glass could have while competed. Glass may be dense, skinny, thick, brittle, and even cloudy.



Checking in with Corning: status of foldable glass Corning Incorprated

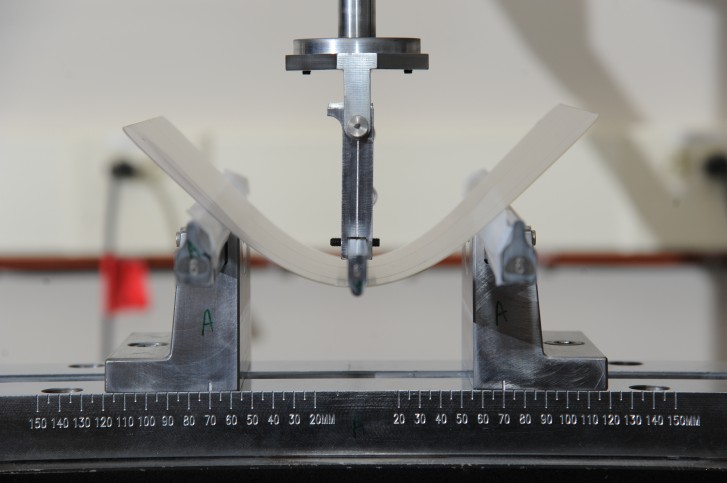

Corning has quite a few enjoy with very thin glass. It has advanced a solution about as thick as a human hair at one hundred microns, which will become bendy to a certain degree. Corning has been operating with OEMs to increase prototypes for destiny folding gadgets and it plans to have a few working glass designs in 12 to 18 months.

The task with glass in this application is that the folding form issue has quite a few variables (i.E. Bending radius, impact resistance, and thickness) that need to be finalized so the glass can agree to this precise purpose. Considering the fact that there may be no standardized folding phone shape thing, Corning desires time to figure out which compositions of glass will be the quality for the application.




Checking in with Corning: fame of foldable glass Corning Incorprated

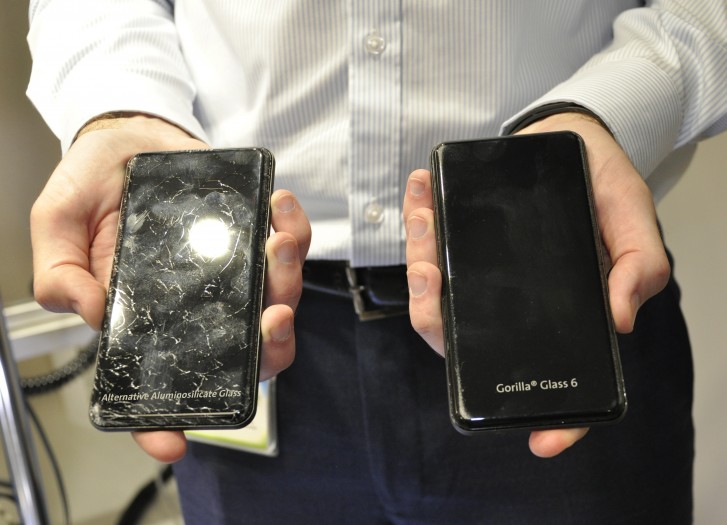

Glass doesn’t wreck always because its vulnerable; glass breaks when pressure is implemented to a flaw or imperfection in the glass. Over time and use, the composition of Gorilla Glass deteriorates at a microscopic stage, which explains why your cellphone may have survived the first eight drops however breaks at the ninth.

With every version of Gorilla Glass, drop resistance improves however scratch resistance sooner or later reaches a threshold. The density and thickness of glass can be altered, however hardness (resistance to scratching) is an necessary belongings of glass. Drop resistance may be stepped forward, however, by using altering the make-up of the glass and parameters of the forming system.
Checking in with Corning: repute of foldable glass Corning Incorprated

Within the extra latest years, Gorilla Glass became formed with curved edges to be used on telephones just like the Galaxy S7 part and the OnePlus 7 pro. That is something that might in no way be achieved with sapphire glass – which isn’t malleable the way Gorilla Glass is.
Checking in with Corning: reputation of foldable glass Corning Incorprated

Again in 2013, there was a unexpected interest in sapphire glass for use in smartphone displays. It turned into a far more difficult cloth that was drastically extra proof against heavy scratching and it turned into as soon as believed it might update glass on most phone displays.

It didn’t exactly pass that way. Sapphire glass grew to become out to be some distance extra highly-priced to fabricate and its composition doesn’t permit it to be fashioned with curved edges.

Corning explains that sapphire glass reveals extremely good achievement in smaller formats like high-give up watches. But, a larger piece of sapphire glass implemented for use in a telephone show could make it more liable to shattering, on the grounds that smartphones are subjected to tumbles and falls more so than, say, a wristwatch. Telephone glass is under steady tension, as a result not a great application for this sort of glass.
Wrap-up

We write approximately a variety of smartphones here at GSMArena, which means that lots of glass has exceeded via the workplace and we’ve touched quite a few it over the years. Although there are a few producers that make glass for smartphones, Corning is the most famous logo found in over 7 billion consumer devices by using over 45 predominant OEMs.

Smartphone glass is some thing that we don’t truely think about – it’s actually invisible. We on occasion handiest word it whilst it gets scratched or cracks completely. Glass is a great cloth for those mini outstanding-computer systems because it's far long lasting and greater scratch resistant than plastic.
Checking in with Corning: reputation of foldable glass Corning Incorprated

A shift came about in the previous couple of years wherein OEMs decided to apply glass on each facets of devices, as a consequence making gadgets (arguably) greater fragile than their metallic-clad predecessors.

Though this will be one downside to using glass in smartphones, it’s a fully obvious fabric that lets in mild and radio indicators to bypass freely and with out interference. Not best that, however it additionally permits for wireless charging while additionally being durable and appealing. It sure makes matters easy for the manufacturer but what approximately the customer? I’ll still argue OEMs should as a minimum try to bring lower back smartphones with metal our bodies, but maybe clients are too deep into wi-fi charging nowadays.




Checking in with Corning: fame of foldable glass Corning Incorprated

In case you’re a clumsy character and your clever tool’s glass by some means continues surviving your drops, you have got tremendous good fortune. If that subsequent drop takes the glass over the threshold of its lifestyles, simply bear in mind all the ones times that the glass didn’t ruin.
